High Precision Cut To Length Line Machine For Stainless Steel Coil Sheet

High Precision Stainless Steel Sheet Cut To Length Line Machine

We make 2-6 x 2000 High precision Stainless steel (SUS201, SUS304) sheet cut to length line in advanced characters.

1. Machines are high precision and robust, all passover rollers are PU coated, machine structure is double strong as normal steel sheet line.

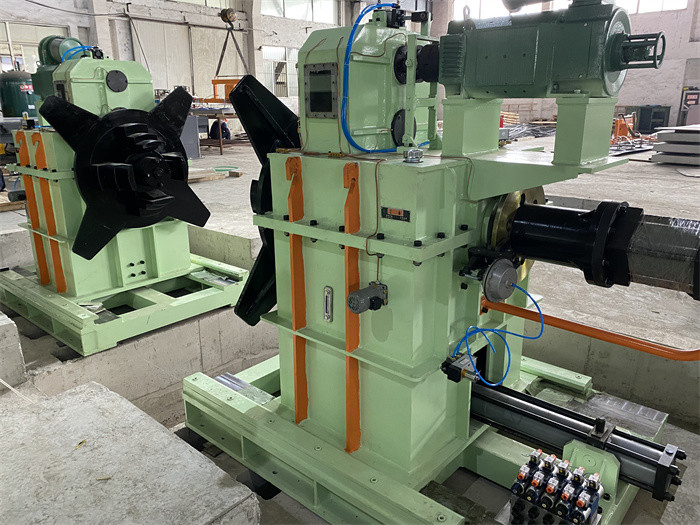

2. Uncoiling stage: Include Coil storing saddle covered with PU rubber plate, Coil loading car with PU rubber plate,Single mandrel or double mandrel uncoiler, Coil head snubber roller, peeler shoveling plate

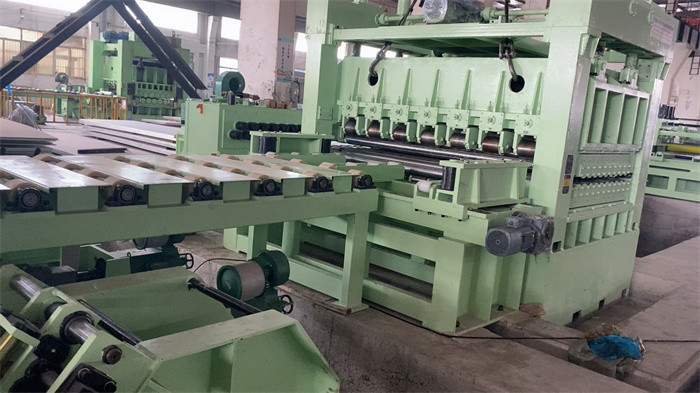

3. Twice Levelers: five rollers pre leveler and 15 rollers fine levelers.
4. Leveler drive is DC or AC motor, reducing gearbox, distribution gearbox and universal joints.
5. Pit loop: before edge trimmer and main leveler, rubber coated rollers of bridge plate to contact stainless steel sheet
6. Servo cutting to length with track moving shear or stop pneumatic shear(and/or Film Laminating)
7. Sheet Discharging: Belt Conveyor,pneumatic sheet receiving arms,X lifting table, exit car or roll table
8. Automatic control: PLC and touch screen, push button panels with functions of emergency stop, alarm lamps, etc.

Stainless steel Coil sheet properties:

Stainless steel sheet is high quality steel, requires high precision high quality cut to length line machine
Stainless steel, such as SUS200, SUS300, SUS400 series, compared with normal carbon steel Yield strength ≤270Mpa Tensile strength≤465Mpa, stainless steel sheet strength Yield strength ≤500Mpa Tensile strength≤800Mpa

Market:

• Stainless steel sheets are valuable steel, has more advantages than plain carbon sheet, its production is increasing and substituting the plain carbon sheet. This requires cut to length line to improve in precision and capacity for the stainless steel sheet making.
• Edge trimming can be arranged before leveling and cutting, film laminating is often required before cutting.
• Stainless steel sheet cut to length line is becoming firstly popular in China, with time the trend will enlarge abroad.

Composition and Parameters:

SUS304 Cut To Length Line Machine

SUS201 Cut To Length Line Machine

Coil Sheet Cut To Length Line
